Drivetrain and power technology that’s been tested in the toughest environments.
OUR TECHNOLOGY
From industrial demolition to civil construction projects, our battery packs are designed to thrive in the most rugged environments.
Electric Traction Motor
Small Actuator
Large Actuator
Motor Drive Electronics
Power Management System
System Intelligence
Battery

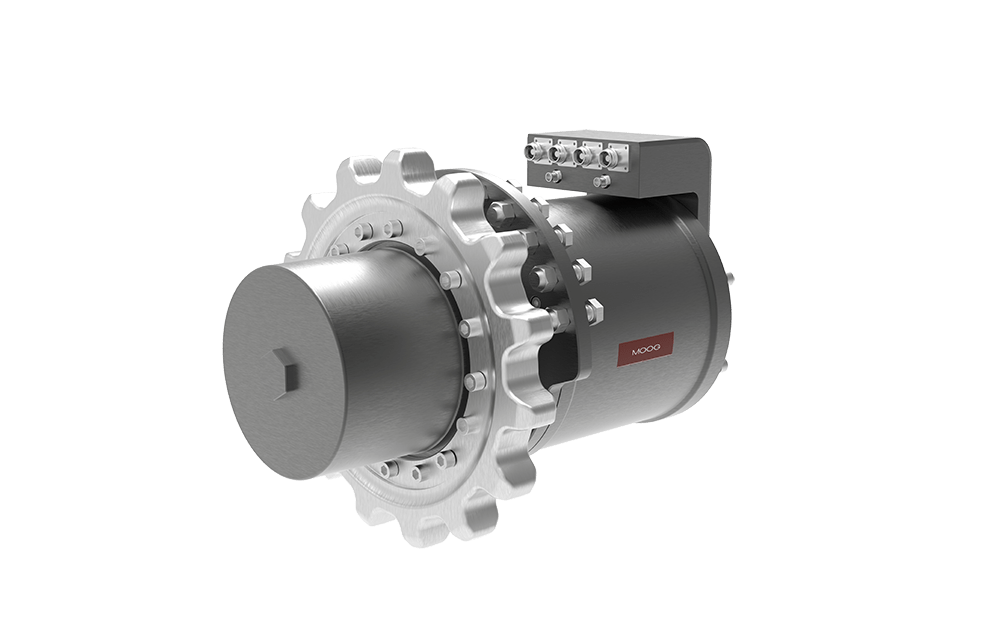

Electric Traction Motor
A family of Compact & Robust Motor / Gearboxes to fit into Compact Mobile Equipment.
- Peak Torque 5700 Nm
- Gear Ratio 17.2:1
- IP Sealing 67:
- Water cooled.
- Parking Brake included.
- Compact / Integrated for packaging
- Design To Cost:
- Developing GB partnerships
- Investigating high volume concepts
- Optimal Motor Design
- Automation
Electric Traction Motor
A family of Compact & Robust Motor / Gearboxes to fit into Compact Mobile Equipment.
- Peak Torque 5700 Nm
- Gear Ratio 17.2:1
- IP Sealing 67:
- Water cooled.
- Parking Brake included.
- Compact / Integrated for packaging
- Design To Cost:
- Developing GB partnerships
- Investigating high volume concepts
- Optimal Motor Design
- Automation

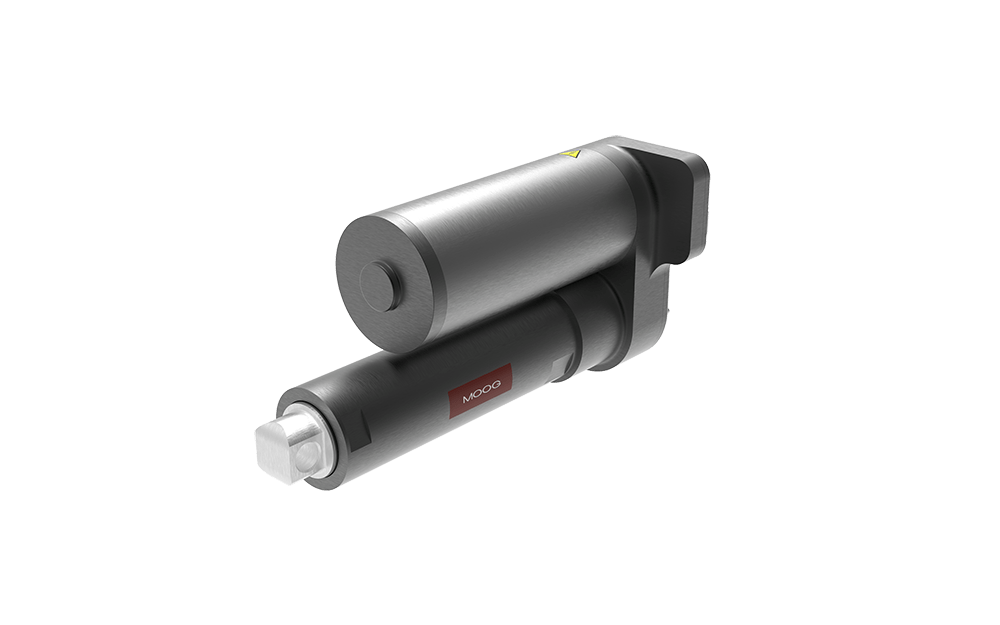

Small Actuator
Compact & robust. Sized to fit in the space of the existing hydraulic cylinders with minimal machine modifications.
Tilt Actuator
- Peak / Con’t Force – 82.5/ 40.7 kN
- Peak Speed – 182mm/s
- Gear Ratio – 2.67:1
- Stroke – 299mm
- Length (retract) – 616.712mm
Lift Actuator
- Peak / Con’t Force – 110/54.6 kN
- Peak Speed – 200mm/s
- Gear Ratio – 2.32:1
- Stroke – 725.6mm
- Length (retract) – 1035.8mm
Large Actuator
Compact & robust. Sized to fit in the space of the existing hydraulic cylinders with minimal machine modifications.
Tilt Actuator
- Peak / Con’t Force – 82.5/ 40.7 kN
- Peak Speed – 182mm/s
- Gear Ratio – 2.67:1
- Stroke – 299mm
- Length (retract) – 616.712mm
Lift Actuator
- Peak / Con’t Force – 110/54.6 kN
- Peak Speed – 200mm/s
- Gear Ratio – 2.32:1
- Stroke – 725.6mm
- Length (retract) – 1035.8mm

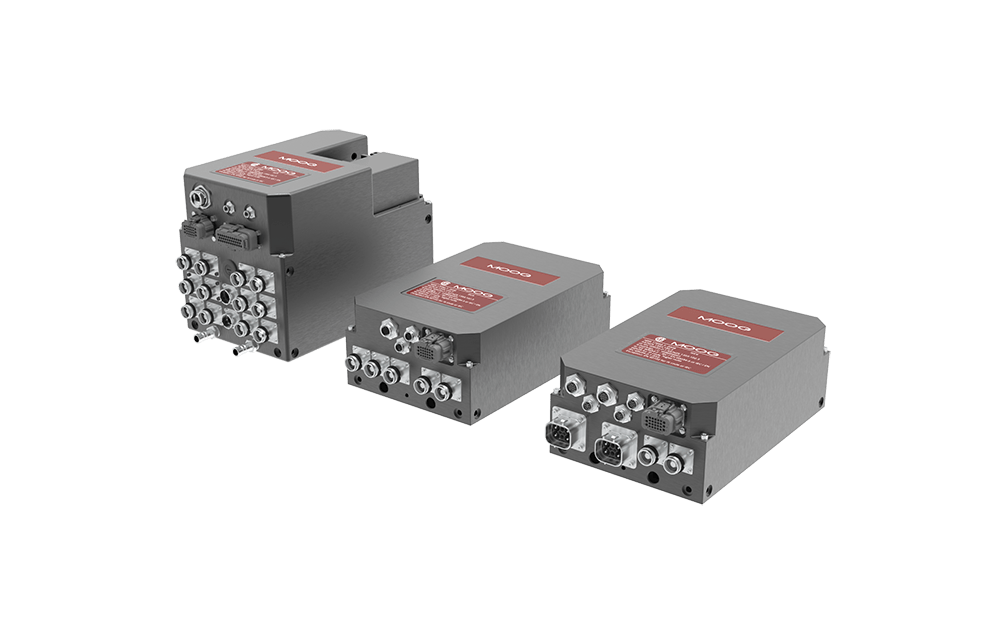

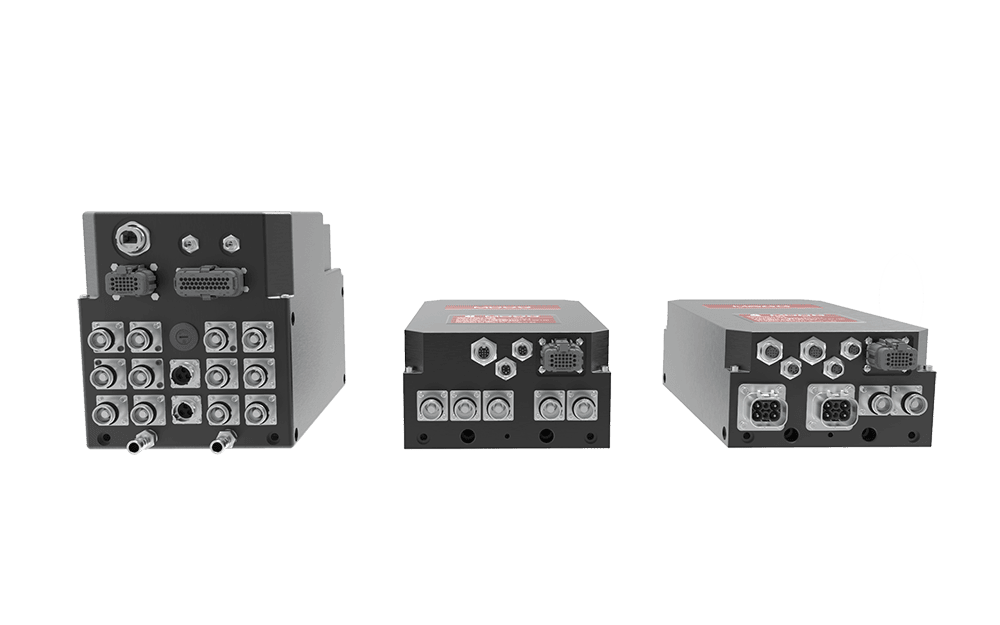

Motor Drive Electronics
Compact & Ruggedized for mobile compact equipment. Optimized for battery based solutions.
- Cost / Compact
- Designed for casting
- Simple assembly
- Ease of installation
- Multi-axis configuration high current and low current axes
- Up to 75kW continuous rating
- Up to 150kW peak rating
- Connectorized to allow flexibility in prototyping stages
- Sealing to IP67 (hose down and temporary immersion)
- Wide operating temperature (-40°C – +50°C)
- High shock and vibration (50g)Low
Power Management System
Compact & Ruggedized for mobile compact equipment. Optimized for battery based solutions.
- All vehicle Power Supplies
- System on chip (SoC)
- Powerful multiple processors
- Tested Linux based system
- Large data storage capability
- CAN Interface to Vehicle Controller
- Flexible IOT / Communications
- High speed data collection
- Interface to all Sensors & Drives
- Machine level
- Axis level
Mobile Machinery Capabilities

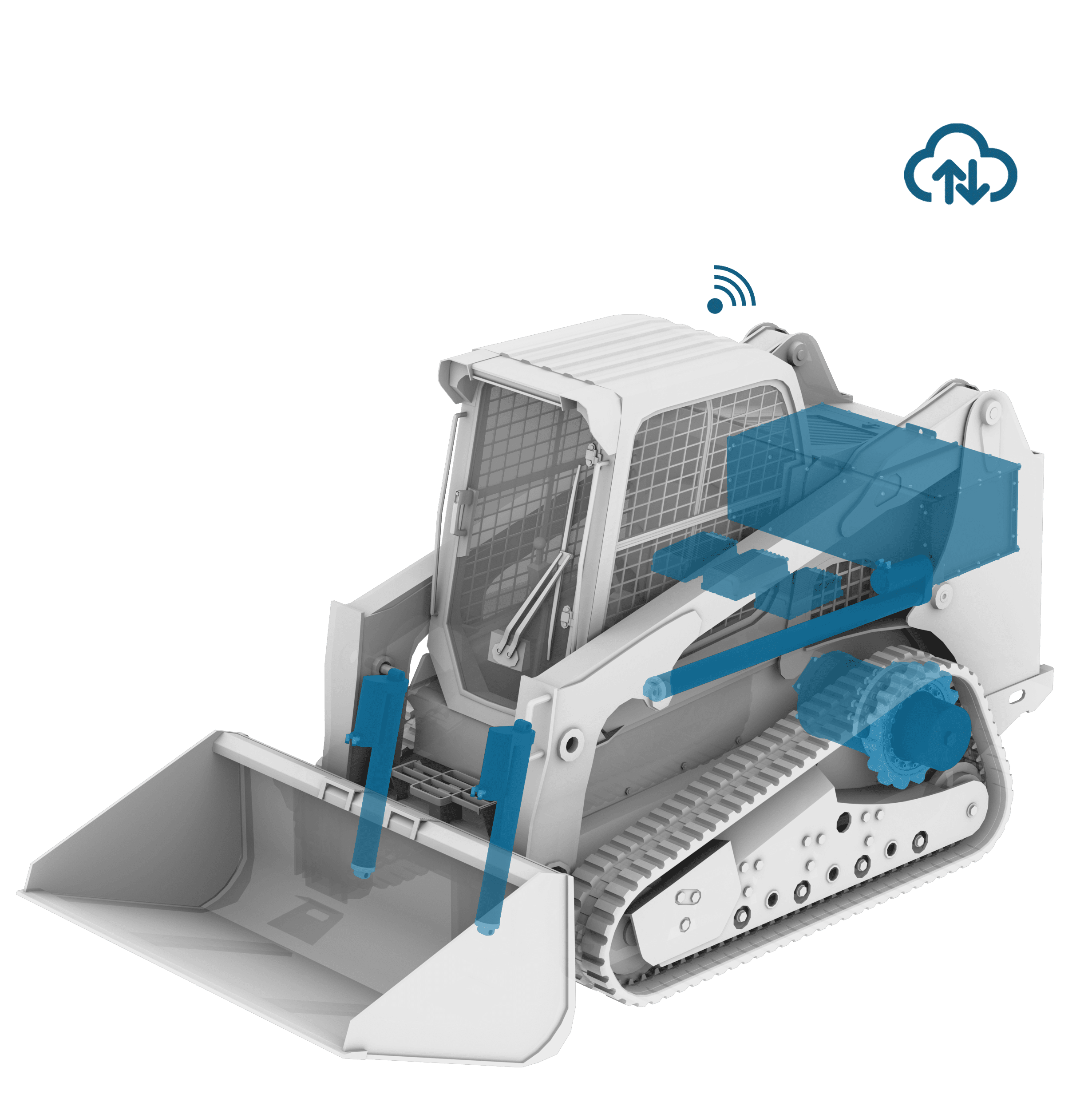

All Electric System
Hardware
- Electric rotary and linear actuation
- Battery & Management System
- Motor drivers and controller
Software and Connectivity
- Digital machine architecture
- Digital connectivity

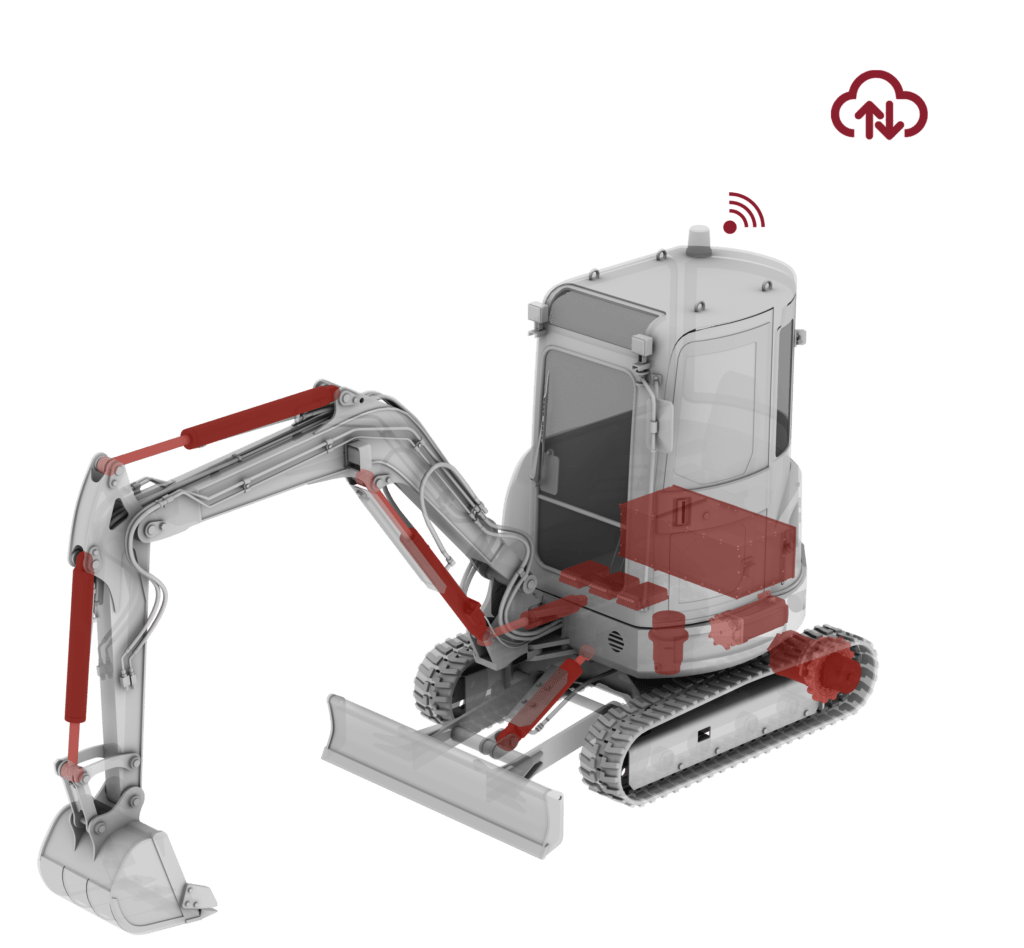

Electro-Hydraulic System
Hardware
- Electric Rotary Motors
- Hydraulic Power Units
- Battery & Management System
- Motor drivers and controller
Software and Connectivity
- Digital machine architecture
- Digital connectivity
